The Allison 1000 transmission has long been a cornerstone of GM’s HD truck lineup, particularly in conjunction with the Duramax engines. Over the years, this transmission has undergone continuous refinements to meet the evolving demands of power, performance, and emissions standards. In this post, we'll break down how the Allison 1000 transmission has evolved across six generations of the Duramax engine family: LB7, LLY, LBZ, LMM, LML, and L5P, highlighting key changes and comparing performance across each year range.

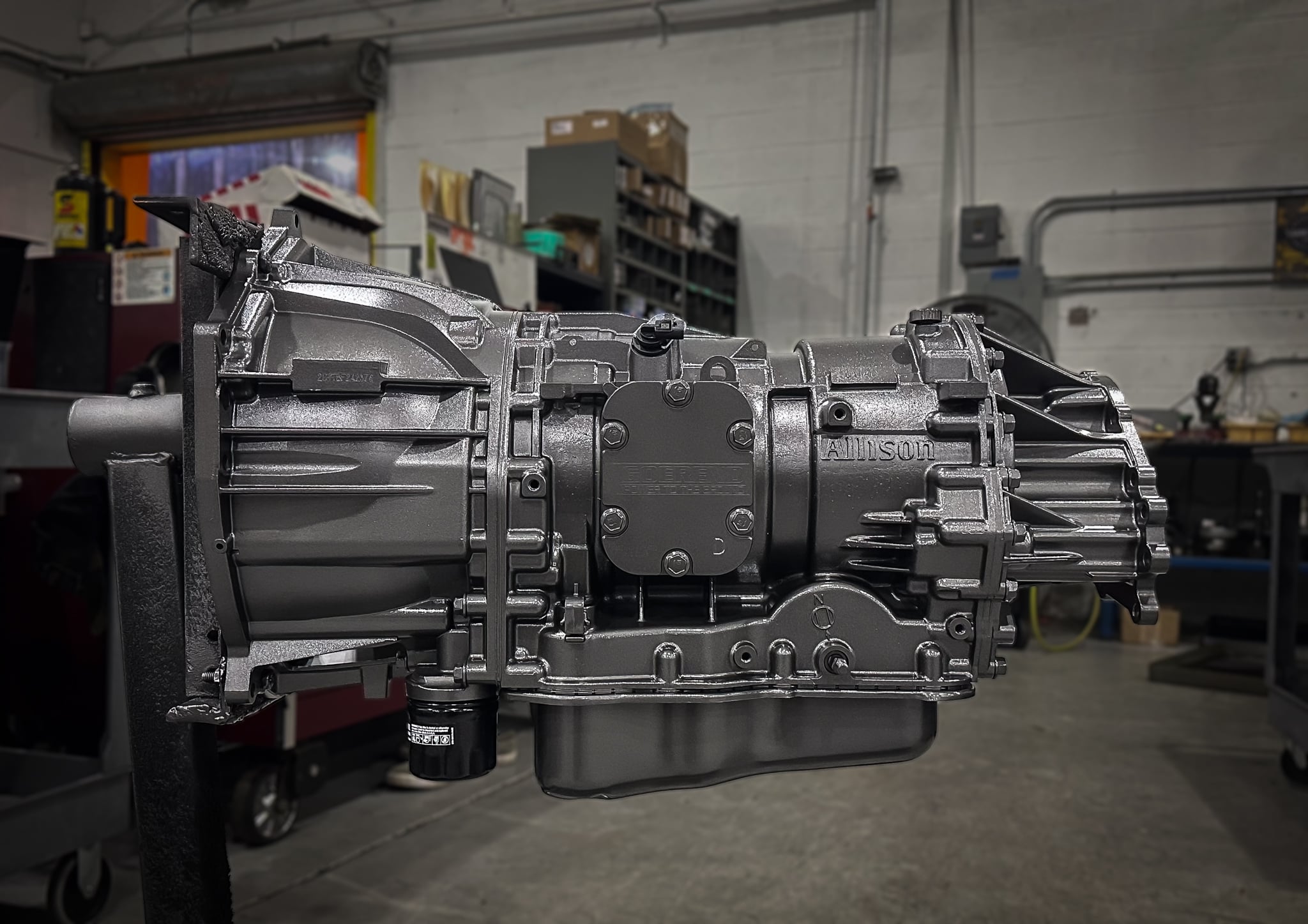

A Quick Overview of the Allison 1000 Transmission

The Allison 1000 is a heavy-duty transmission used in many heavy duty vehicle applications. Though it has evolved over time to improve fuel efficiency, durability, and towing performance. The basic architecture has remained consistent, and the design has adapted to meet the increasing power output of the Duramax engines along with the ever-stricter emissions standards.

Key Features of the Allison 1000 Transmission:

• Torque Capacity: The Allison 1000 has been strengthened over time to handle the increasing torque of the Duramax engines.
• 5-Speeds to 6-Speeds to 10-Speeds: While earlier models featured 5-speed and 6-speed versions, the newer L5Pmodels (from 2020 onward) introduced a 10-speed Allison 1000 transmission.
• Durability: Known for its robustness, the Allison 1000 is well-suited for towing and heavy-duty applications.
• Electronic Control: Advanced electronics manage shift points, optimizing performance, fuel economy, and driving comfort.

The Evolution of the Allison 1000 Across Duramax Generations:

1. LB7 (2001-2004): The Beginning of the Allison 1000 Era

The LB7 Duramax, GM's first turbo-diesel engine, was paired with the original Allison 1000 5-speed transmission. This marked a revolutionary step in the diesel pickup segment, but the power output of the LB7 was relatively modest compared to later versions.

• Transmission: Allison 1000, 5-speed automatic
• MAX Horsepower Capacity: 400rwhp
• MAX Torque Capacity: 680 lb-ft
• Key Features: First use of the Allison 1000 with the LB7, a reliable but basic transmission for its time.
• Limitations: The 5-speed was less efficient in managing power delivery, particularly in towing and highway cruising.

2. LLY (2004.5-2005): Refinements to the 5-Speed Allison

The LLY Duramax saw minor refinements to the engine and emissions system, but the 5-speed Allison 1000 was carried over from the LB7.

• Transmission: Allison 1000, 5-speed automatic
• MAX Horsepower Capacity: 410rwhp
• MAX Torque Capacity: 700 lb-ft
• Key Features: Minor improvements in the Allison 1000 transmission to handle the increased engine output.
• Limitations: Despite the increased power, the 5-speed transmission continued to be less efficient than later models.

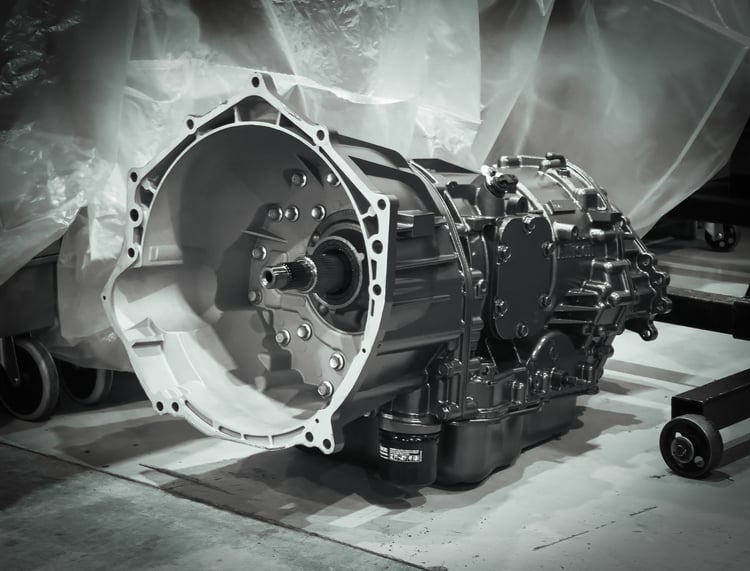

3. LBZ (2006-2007): The Arrival of the 6-Speed Allison!

The LBZ Duramax brought the first significant upgrade to the Allison 1000, with the introduction of the 6-speed transmission. This was a major step forward in terms of towing capacity, efficiency, and overall performance.

• Transmission: Allison 1000, 6-speed automatic
• MAX Horsepower Capacity: 500rwhp
• MAX Torque Capacity: 900 lb-ft
• Key Features: The introduction of the 6-speed Allison 1000 provided better shift patterns, improved towing capabilities, and smoother highway driving.
• Limitations: Though improved, the LBZ’s emissions systems were still relatively basic compared to later models, and the 6-speed version wasn’t as refined as newer iterations.

4. LMM (2007.5-2010): Enhancements for Emissions Compliance

The LMM Duramax continued with the 6-speed Allison 1000, but this generation had to meet stricter emissions requirements, such as the inclusion of the diesel particulate filter (DPF). The transmission was improved to handle the additional weight and complexity.

• Transmission: Allison 1000, 6-speed automatic
• MAX Horsepower Capacity: 500rwhp
• MAX Torque Capacity: 900 lb-ft
• Key Features: Enhanced electronics for better shift calibration and towing performance; stronger internals to handle added emissions equipment.
• Limitations: The increased weight from emissions components sometimes led to reduced performance, and early models experienced some reliability issues with the DPF system.

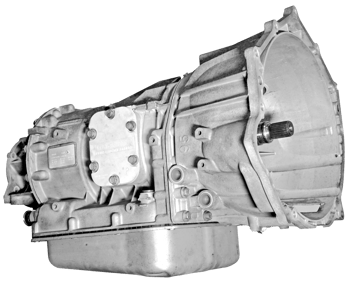

5. LML (2011-2016): A Stronger, More Refined 6-Speed

The LML Duramax produced more torque than the previous generation, and the Allison 1000 was further refined to cope with up to 550rwhp of holding force. The 6-speed version in this generation was better equipped to manage the higher power output, and internal components were strengthened for better durability.

• Transmission: Allison 1000, 6-speed automatic
• MAX Horsepower Capacity: 550rwhp
• MAX Torque Capacity: 1000 lb-ft
• Key Features: Stronger internal components, improved electronic controls for better towing and performance under load, and enhanced calibration for smoother shifting.
• Limitations: Despite the advancements, the transmission still faced challenges in dealing with the heavier emissions systems and the power demands of the LML.

6. L5P/L5D (2017-2023): A Shift from 6 gears to 10!

The L5P/L5D Duramax represents the pinnacle of the Duramax engine family in terms of power and performance. However, for the first few years (2017-2019), the Allison 1000 6-speed was retained, and the transmission was updated to handle the increased torque output of the L5P engine. In 2020, GM transitioned to a new 10-speed Allison 1000 to take full advantage of the 910 lb-ft of torque the engine produces.

L5P/L5D (2017-2019) - 6-Speed Allison 1000

In the 2017-2019 L5P Duramax, the Allison 1000 6-speed automatic transmission was kept, despite the increase in power output. The 6-speed version was capable of handling the higher torque of the L5P, but it didn't take full advantage of the engine's capabilities compared to the newer 10-speed version.

• Transmission: Allison 1000, 6-speed automatic
• MAX Horsepower Capacity: 600rwhp
• MAX Torque Capacity: 1200 lb-ft
• Key Features: The 6-speed Allison was still a very durable and reliable transmission capable of towing heavy loads and handling the L5P’s power.
• Limitations: The 6-speed didn't offer the level of refinement seen in newer transmissions. It was less fuel-efficient, had less smooth shifting under load, and wasn’t as responsive as the newer 10-speed version.

L5P/L5D (2020-2023) - 10-Speed Allison 1000

Starting in 2020, the L5P Duramax received the updated Allison 1000 10-speed automatic transmission, which dramatically improved performance, fuel economy, and shifting smoothness. This upgrade allowed the truck to fully utilize the 910 lb-ft of torque, improving driving dynamics and towing efficiency.

• Transmission: Allison 1000, 10-speed automatic
• MAX Horsepower Capacity: 600rwhp
• MAX Torque Capacity: 1200 lb-ft
• Key Features: The 10-speed version provides smoother shifts, better towing performance, and improved fuel efficiency by keeping the engine in the optimal power band for longer durations. It also helps reduce engine strain during heavy towing and improves overall ride quality.
• Limitations: While offering superior performance, the 10-speed version is more complex and can result in higher repair costs in the event of failure, due to the increased electronics and mechanical components.

Comparison of Allison 1000 Transmission Across Duramax RPOs

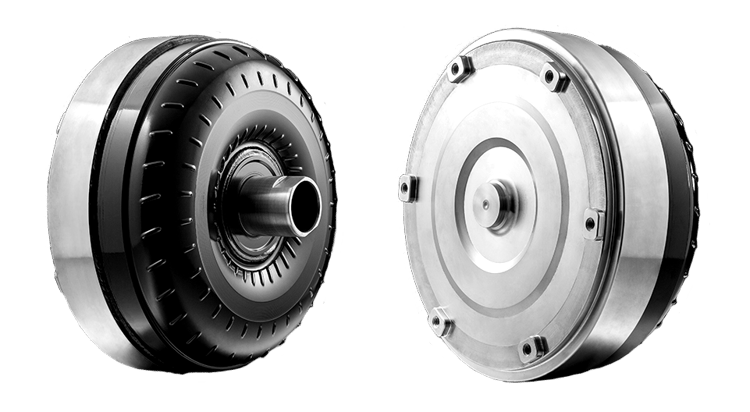

The Role of the Torque Converter in the Allison 1000 Transmission

The torque converter is a crucial component of any automatic transmission, and the Allison 1000 is no exception. It serves as a coupling device between the engine and the transmission, allowing for smooth power transfer, particularly when the truck is at a stop or transitioning between gears. The torque converter's primary job is to multiply torque, allowing the vehicle to begin moving without stalling and facilitating smooth shifting under load. The design of the torque converter, including its stall speed, lockup capabilities, and overall construction, plays a significant role in how a truck feels to drive, especially under heavy towing conditions. Over the years, the Allison 1000 torque converter has evolved along with the rest of the transmission. Let’s break down how the torque converter differs across the various Duramax generations.

Torque Converters in the Allison 1000 Transmissions

LB7 & LLY (2001-2005) - 5-Speed Torque Converter (Single-Disk)

In the LB7 and LLY Duramax engines, paired with the 5-speed Allison 1000, the torque converter was designed to handle relatively moderate power levels compared to later models.

• Torque Converter Design:  The early single-disk torque converter featured a higher stall speed (typically around 1,800–2,000 RPM). This higher stall speed allowed for smoother power engagement from the lower-output LB7 and LLY engines but did not provide the level of refinement or power handling of later versions.
• Lock-Up Clutch: These early torque converters also featured a lock-up clutch, which would engage at higher speeds to directly connect the engine and transmission, providing better fuel efficiency and eliminating some of the slippage typically seen in traditional automatic transmissions. However, these converters were less advanced compared to the later versions and could exhibit a bit more "slippage" under heavy load or at low speeds.

LBZ & LMM (2006-2010) - 6-Speed Torque Converter (Single-Disk and Early Dual-Disk)

With the introduction of the 6-speed Allison 1000 in the LBZ and LMM Duramax engines, the torque converter saw some refinement to handle the increased torque and power output.

• Torque Converter Design: The 6-speed torque converters in these models started transitioning to a dual-disk design for some versions, which allowed for better torque handling and smoother engagement. This was especially helpful as the LBZ and LMM engines produced more torque (660 lb-ft), requiring a stronger converter. The stall speed dropped slightly to around 1,600–1,800 RPM, optimizing towing and overall performance.
• Lock-Up Technology: The lock-up clutch system was further refined, allowing for more effective engagement at lower RPMs, reducing heat buildup and improving towing capacity. The shift to dual-disk torque converters provided better load management, reducing slip and improving fuel efficiency, especially when towing heavy loads.

LML (2011-2016) - 6-Speed Torque Converter (Dual-Disk)

The LML Duramax also used the 6-speed Allison 1000, but the torque converter was upgraded again to better handle the higher power output and the increased 765 lb-ft of torque.

• Torque Converter Design: By the time of the LML, the dual-disk torque converter was the standard for the Allison 1000. The dual-disk design allowed for increased torque capacity, better heat management, and smoother engagement. The stall speed was lowered further to around 1,400–1,600 RPM, improving overall drivability, especially in towing scenarios.
• Lock-Up Improvements: The more advanced lock-up technology in the LML's dual-disk torque converter further improved the converter's ability to manage high-stress loads. This design greatly reduced the potential for overheating, a key improvement for long-haul and towing applications.

L5P/L5D (2017-2023) - 6-Speed and 10-Speed Torque Converters (Dual-Disk)

The L5P Duramax took the Allison 1000 to the next level, especially with the introduction of the 10-speed Allison 1000in 2020. The torque converter design continues to evolve, focusing on better efficiency, smoother shifts, and the ability to handle the massive 910 lb-ft of torque.

2017-2019 L5P/L5D - 6-Speed Torque Converter (Dual-Disk)

• Torque Converter Design: The 6-speed torque converter in the L5P still utilized a dual-disk design, but it was further optimized for the increased power and torque produced by the L5P Duramax. The stall speed was lowered to around 1,400 RPM, allowing for smoother power delivery and more efficient use of the engine's torque at lower RPMs.
• Lock-Up Technology: The dual-disk design provided greater control over heat and slippage, especially when towing or hauling heavy loads. The torque converter’s ability to lock up at lower RPMs helped improve fuel economy and maintain engine efficiency.

2020-2023 L5P - 10-Speed Torque Converter (Dual-Disk)

• Torque Converter Design: The 10-speed Allison 1000 introduced a new, highly refined dual-disk torque converter, designed to provide quicker, seamless shifts, and handle the 910 lb-ft of torque from the L5P more efficiently. The stall speed is set to allow for quick acceleration and better towing power, while maintaining engine efficiency for highway cruising.
• Lock-Up Clutch Improvements: The 10-speed torque converter features an even more advanced lock-up clutch system, allowing for the converter to engage and disengage at lower speeds for greater fuel economy. The additional gears in the 10-speed Allison allow the engine to stay in its optimal torque range, reducing strain during heavy towing or off-road driving.

Torque Converter Comparison Summary

Conclusion

The Allison 1000 transmission has been a cornerstone of the Duramax diesel powertrain since its debut in the LB7Duramax, where it was first paired with a 5-speed Allison 1000 transmission. While the 5-speed Allison was a solid performer in its time, it was relatively basic, offering less smooth shifting and fuel efficiency than the later 6-speed and 10-speed versions. For the LB7 and LLY Duramax engines, the 5-speed was sufficient for the torque these engines produced, but it didn't offer the same level of refinement or towing efficiency found in later versions.

As the Duramax engines evolved, so did the Allison 1000, with the 6-speed Allison introduced in the LBZ and continuing through the LMM and LML. These models offered better shifting, increased torque handling, and greater towing capability. Finally, with the L5P (from 2020 onward), GM upgraded to the 10-speed Allison 1000, dramatically improving performance, fuel efficiency, and towing prowess. This newer version offers smoother, more responsive shifts and better overall driving dynamics, especially for high-torque situations like towing and off-roading.

• The 5-speed Allison (from the LB7 to the LLY) laid the foundation for the Allison 1000's success. While it’s not as refined as the later versions, it was a reliable and durable transmission for its time, perfectly suited for the relatively moderate torque output of the early Duramax engines.
• The 6-speed Allison (from the LBZ to the L5P) improved on its predecessor by offering more gears, resulting in better power management, improved towing capability, and smoother highway driving.
• The 10-speed Allison 1000 in the L5P (2020-2023) provides the best all-around performance, offering better fuel efficiency, a smoother driving experience, and better handling of the L5P's high torque, especially under load.

The torque converter is also a key element in the performance and efficiency of the Allison 1000 transmission across the Duramax lineup. As the Duramax engines evolved, so too did the design and functionality of the torque converters.

• The 5-speed torque converters used in the LB7 and LLY models had relatively higher stall speeds and less efficient lock-up technology, making them less refined than the later versions.
• The 6-speed torque converters in the LBZ, LMM, and LML improved upon this by offering lower stall speeds, better fuel efficiency, and refined lock-up systems for more responsive performance, especially under load.
• With the introduction of the 10-speed Allison in the L5P (2020 onward), the torque converter became even more advanced, offering improved efficiency, smoother shifts, and better towing performance, especially when paired with the increased power of the L5P Duramax engine.



In conclusion, the Allison 1000 transmission has continuously evolved to meet the demands of modern diesel trucks, and regardless of the version, it remains one of the most reliable and durable transmissions available. The transition from the 5-speed to the 6-speed, and finally to the 10-speed, reflects the constant innovation in diesel powertrains—each step offering more refined performance and greater capability. Whether you’re considering an earlier 5-speed Allison for its durability, or opting for the latest 10-speed version for the best towing and fuel economy, the Allison 1000 remains a benchmark of reliability and strength in the diesel truck world.
